质粒名称: | pBABE BRG1 |
---|---|
出品公司: | 爱迪基因 |
目录编号: | 1959 |
存储实验室: | Robert Kingston |
载体骨架基本信息 |
|
载体名称: | pBABE-puro |
载体抗性: | 氨苄霉素 |
空载体大小: | 5200 bp |
完整质粒大小: | 10200 bp |
载体类型: | 哺乳细胞表达,逆转录病毒 |
筛选标记: | 嘌呤霉素 |
高拷贝/低拷贝: | 高拷贝 |
生长条件: | 37 ℃ |
插入基因信息 |
|
插入基因名称: | BRG1 |
物种来源: | 人源 |
插入大小: | 5000 bp |
基因又名: | BAF190a |
标签/融合蛋白: | flag (C terminal on insert) |
克隆方法: | 限制性内切酶 |
5' 克隆位点: | SalI(未破坏) |
3' 克隆位点: | SalI (未破坏) |
5' 测序引物 | pBABE 5' |
文献引用方法 |
|
材料和方法部分: | pBABE BRG1 was a gift from Robert Kingston (爱迪基因 plasmid # 1959) |
参考文献部分: | Purification and characterization of mSin3A-containing Brg1 and hBrm chromatin remodeling complexes. Sif S, Saurin AJ, Imbalzano AN, Kingston RE. Genes Dev 2001 Mar 1;15(5):603-18. 10.1101/gad.872801 PubMed 11238380 |
买家导航
pBABEBRG1载体基本信息

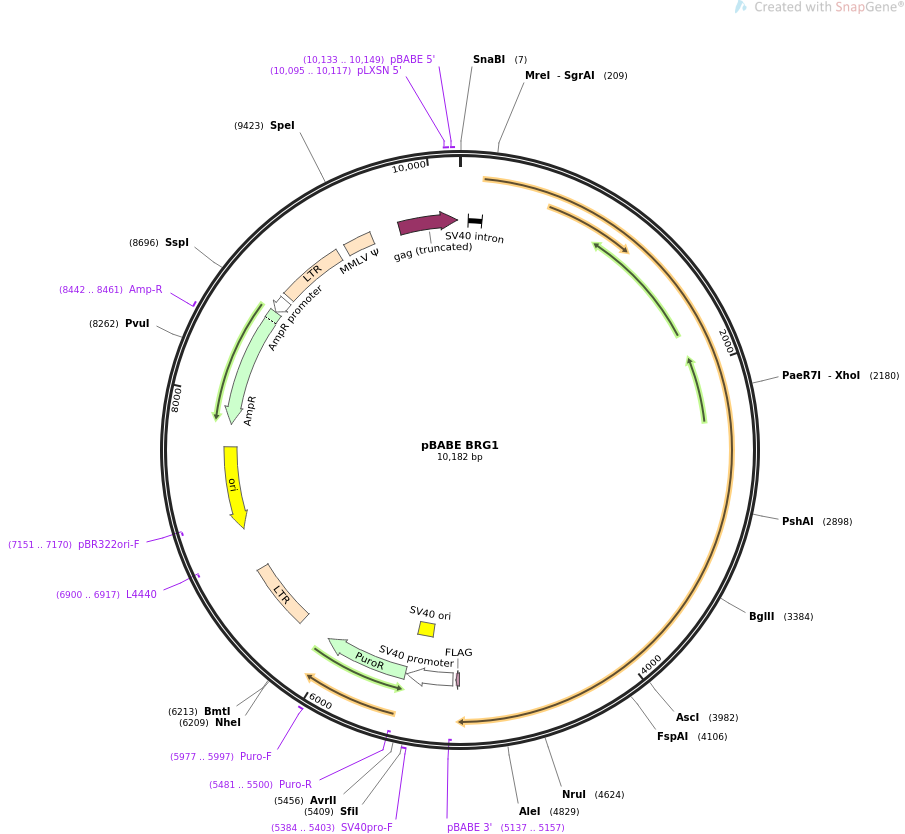

pBABEBRG1载体图谱质粒图谱和多克隆位点信息
pBABEBRG1载体简介
pBABEBRG1载体序列
LOCUS pBABE BRG1 10182 bp ds-DNA circular SYN 10-JAN-2018 DEFINITION synthetic circular DNA ACCESSION . VERSION . KEYWORDS pBABE BRG1 SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 10182) AUTHORS Sif S, Saurin AJ, Imbalzano AN, Kingston RE TITLE Purification and characterization of mSin3A-containing Brg1 and hBrm chromatin remodeling complexes. JOURNAL Genes Dev 2001 Mar 1;15(5):603-18. PUBMED 11238380 COMMENT This file is created by Vector NTI http://www.biofeng.com/ COMMENT ORIGDB|GenBank COMMENT VNTAUTHORNAME|biofeng.com| COMMENT VNTNAME|pBABE BRG1| FEATURES Location/Qualifiers source 1..10182 /organism="synthetic DNA construct" /mol_type="other DNA" intron 59..155 /label=SV40 intron /note="modified SV40 intron with splice donor and acceptor sites" CDS 5096..5119 /codon_start=1 /product="FLAG(R) epitope tag, followed by an enterokinase cleavage site" /label=FLAG /translation="DYKDDDDK" primer_bind complement(5137..5157) /label=pBABE 3' /note="SV40 enhancer, reverse primer for pBABE vectors" promoter 5142..5471 /label=SV40 promoter /note="SV40 enhancer and early promoter" rep_origin 5322..5457 /label=SV40 ori /note="SV40 origin of replication" primer_bind 5384..5403 /label=SV40pro-F /note="SV40 promoter/origin, forward primer" CDS 5481..6080 /codon_start=1 /gene="pac from Streptomyces alboniger" /product="puromycin N-acetyltransferase" /label=PuroR /note="confers resistance to puromycin" /translation="MTEYKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIER VTELQELFLTRVGLDIGKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLA AQQQMEGLLAPHRPKEPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETS APRNLPFYERLGFTVTADVEVPEGPRTWCMTRKPGA" primer_bind complement(5481..5500) /label=Puro-R /note="Puromycin resistance gene, reverse primer. Also called puro-variant-R" primer_bind 5977..5997 /label=Puro-F /note="Puromycin resistance gene, forward primer" LTR 6301..6770 /note="long terminal repeat from Moloney murine leukemia virus" primer_bind complement(6900..6917) /label=L4440 /note="L4440 vector, forward primer" rep_origin complement(7071..7659) /direction=LEFT /label=ori /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" primer_bind complement(7151..7170) /label=pBR322ori-F /note="pBR322 origin, forward primer" CDS complement(7819..8679) /codon_start=1 /gene="bla" /product="beta-lactamase" /label=AmpR /note="confers resistance to ampicillin, carbenicillin, and related antibiotics" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS LIKHW" primer_bind 8442..8461 /label=Amp-R /note="Ampicillin resistance gene, reverse primer" promoter complement(8680..8784) /gene="bla" /label=AmpR promoter LTR 8815..9284 /note="long terminal repeat from Moloney murine leukemia virus" misc_feature 9349..9548 /label=MMLV Psi /note="packaging signal of Moloney murine leukemia virus (MMLV)" CDS 9749..10165 /label=gag (truncated) /note="truncated Moloney murine leukemia virus (MMLV) gag gene lacking the start codon" primer_bind 10095..10117 /label=pLXSN 5' /note="Murine stem cell virus, forward primer. Also called MSCV" primer_bind 10133..10149 /label=pBABE 5' /note="Psi packaging signal, forward primer for pBABE vectors" ORIGIN 1 gtggtacgta ggaattcgcc agcacagtgg tcgacggtat cgataagctt gataactggt 61 aagtttagtc tttttgtctt ttatttcagg tcccggatcc ggtggtggtg caaatcaaag 121 aactgctcct cagtggatgt tgcctttact tctaggcctg tacggaagtg ttacttctgc 181 tctaaaagct gctctagccc tcgacggcgc cggcggctcc tgcaggaggc cactgtctgc 241 agctcccgtg aagatgtcca ctccagaccc acccctgggc ggaactcctc ggccaggtcc 301 ttccccgggc cctggccctt cccctggagc catgctgggc cctagcccgg gtccctcgcc 361 gggctccgcc cacagcatga tggggcccag cccagggccg ccctcagcag gacaccccat 421 ccccacccag gggcctggag ggtaccctca ggacaacatg caccagatgc acaagcccat 481 ggagtccatg catgagaagg gcatgtcgga cgacccgcgc tacaaccaga tgaaaggaat 541 ggggatgcgg tcagggggcc atgctgggat ggggcccccg cccagcccca tggaccagca 601 ctcccaaggt tacccctcgc ccctgggtgg ctctgagcat gcctctagtc cagttccagc 661 cagtggcccg tcttcggggc cccagatgtc ttccgggcca ggaggtgccc cgctggatgg 721 tgctgacccc caggccttgg ggcagcagaa ccggggccca accccattta accagaacca 781 gctgcaccag ctcagagctc agatcatggc ctacaagatg ctggccaggg ggcagcccct 841 ccccgaccac ctgcagatgg cggtgcaggg caagcggccg atgcccggga tgcagcagca 901 gatgccaacg ctacctccac cctcggtgtc cgcaacagga cccggccctg gccctggccc 961 tggccccggc ccgggtcccg gcccggcacc tccaaattac agcaggcctc atggtatggg 1021 agggcccaac atgcctcccc caggaccctc gggcgtgccc cccgggatgc caggccagcc 1081 tcctggaggg cctcccaagc cctggcctga aggacccatg gcgaatgctg ctgcccccac 1141 gagcacccct cagaagctga ttcccccgca gccaacgggc cgcccttccc ccgcgccccc 1201 tgccgtccca cccgccgcct cgcccgtgat gccaccgcag acccagtccc ccgggcagcc 1261 ggcccagccc gcgcccatgg tgccactgca ccagaagcag agccgcatca cccccatcca 1321 gaagccgcgg ggcctcgacc ctgtggagat cctgcaggag cgcgagtaca ggctgcaggc 1381 tcgcatcgca caccgaattc aggaacttga aaaccttccc gggtccctgg ccggggattt 1441 gcgaaccaaa gcgaccattg agctcaaggc cctcaggctg ctgaacttcc agaggcagct 1501 gcgccaggag gtggtggtgt gcatgcggag ggacacagcg ctggagacag ccctcaatgc 1561 taaggcctac aagcgcagca agcgccagtc cctgcgcgag gcccgcatca ctgagaagct 1621 ggagaagcag cagaagatcg agcaggagcg caagcgccgg cagaagcacc aggaatacct 1681 caatagcatt ctccagcatg ccaaggattt caaggaatat cacagatccg tcacaggcaa 1741 aatccagaag ctgaccaagg cagtggccac gtaccatgcc aacacggagc gggagcagaa 1801 gaaagagaac gagcggatcg agaaggagcg catgcggagg ctcatggctg aagatgagga 1861 ggggtaccgc aagctcatcg accagaagaa ggacaagcgc ctggcctacc tcttgcagca 1921 gacagacgag tacgtggcta acctcacgga gctggtgcgg cagcacaagg ctgcccaggt 1981 cgccaaggag aaaaagaaga aaaagaaaaa gaagaaggca gaaaatgcag aaggacagac 2041 gcctgccatt gggccggatg gcgagcctct ggacgagacc agccagatga gcgacctccc 2101 ggtgaaggtg atccacgtgg agagtgggaa gatcctcaca ggcacagatg cccccaaagc 2161 cgggcagctg gaggcctggc tcgagatgaa cccggggtat gaagtagctc cgaggtctga 2221 tagtgaagaa agtggctcag aagaagagga agaggaggag gaggaagagc agccgcaggc 2281 agcacagcct cccaccctgc ccgtggagga gaagaagaag attccagatc cagacagcga 2341 tgacgtctct gaggtggacg cgcggcacat cattgagaat gccaagcaag atgtcgatga 2401 tgaatatggc gtgtcccagg cccttgcacg tggcctgcag tcctactatg ccgtggccca 2461 tgctgtcact gagagagtgg acaagcagtc agcgcttatg gtcaatggtg tcctcaaaca 2521 gtaccagatc aaaggtttgg agtggctggt gtccctgtac aacaacaacc tgaacggcat 2581 cctggccgac gagatgggcc tggggaagac catccagacc atcgcgctca tcacgtacct 2641 catggagcac aaacgcatca atgggccctt cctcatcatc gtgcctctct caacgctgtc 2701 caactgggcg tacgagtttg acaagtgggc cccctccgtg gtgaaggtgt cttacaaggg 2761 atccccagca gcaagacggg cctttgtccc ccagctccgg agtgggaagt tcaacgtctt 2821 gctgacgacg tacgagtaca tcatcaaaga caagcacatc ctcgccaaga tccgttggaa 2881 gtacatgatt gtggacgaag gtcaccgcat gaagaaccac cactgcaagc tgacgcaggt 2941 gctcaacacg cactatgtgg caccccgccg cctgctgctg acgggcacac cgctgcagaa 3001 caagcttccc gagctctggg cgctgctcaa cttcctgctg cccaccatct tcaagagctg 3061 cagcaccttc gagcagtggt ttaacgcacc ctttgccatg accggggaaa aggtggacct 3121 gaatgaggag gaaaccattc tcatcatccg gcgtctccac aaagtgctgc ggcccttctt 3181 gctccgacga ctcaagaagg aagtcgaggc ccagttgccc gaaaaggtgg agtacgtcat 3241 caagtgcgac atgtctgcgc tgcagcgagt gctctaccgc cacatgcagg ccaagggcgt 3301 gctgctgact gatggctccg agaaggacaa gaagggcaaa ggcggcacca agaccctgat 3361 gaacaccatc atgcagctgc ggaagatctg caaccacccc tacatgttcc agcacatcga 3421 ggagtccttt tccgagcact tggggttcac tggcggcatt gtccaagggc tggacctgta 3481 ccgagcctcg ggtaaatttg agcttcttga tagaattctt cccaaactcc gagcaaccaa 3541 ccacaaagtg ctgctgttct gccaaatgac ctccctcatg accatcatgg aagattactt 3601 tgcgtatcgc ggctttaaat acctcaggct tgatggaacc acgaaggcgg aggaccgggg 3661 catgctgctg aaaaccttca acgagcccgg ctctgagtac ttcatcttcc tgctcagcac 3721 ccgggctggg gggctcggcc tgaacctcca gtcggcagac actgtgatca tttttgacag 3781 cgactggaat cctcaccagg acctgcaagc gcaggaccga gcccaccgca tcgggcagca 3841 gaacgaggtg cgtgtgctcc gcctctgcac cgtcaacagc gtggaggaga agatcctagc 3901 tgcagccaag tacaagctca acgtggacca gaaggtgatc caggccggca tgttcgacca 3961 gaagtcctcc agccatgagc ggcgcgcctt cctgcaggcc atcctggagc acgaggagca 4021 ggatgaggag gaagacaagg tgcccgacga cgagaccgtc aaccagatga tcgcccggca 4081 cgaggaggag tttgatctgt tcatgcgcat ggacctggac cgcaggcgcg aggaggcccg 4141 caaccccaag cggaagccgc gcctcatgga ggaggacgag ctcccctcgt ggatcatcaa 4201 ggacgacgcg gaggtggagc ggctgacctg tgaggaggag gaggagaaga tgttcggccg 4261 tggctcccgc caccgcaagg aggtggacta cagcgactca ctgacggaga agcagtggct 4321 caaggccatc gaggagggca cgctggagga gatcgaagag gaggtccggc agaagaaatc 4381 atcacggaag cgcaagcgag acagcgacgc cggctcctcc accccgacca ccagcacccg 4441 cagccgcgac aaggacgacg agagcaagaa gcagaagaag cgcgggcggc cgcctgccga 4501 gaaactctcc cctaacccac ccaacctcac caagaagatg aagaagattg tggatgccgt 4561 gatcaagtac aaggacagca gcagtggacg tcagctcagc gaggtcttca tccagctgcc 4621 ctcgcgaaag gagctgcccg agtactacga gctcatccgc aagcccgtgg acttcaagaa 4681 gataaaggag cgcattcgca accacaagta ccgcagcctc aacgacctag agaaggacgt 4741 catgctcctg tgccagaacg cacagacctt caacctggag ggctccctga tctatgaaga 4801 ctccatcgtc ttgcagtcgg tcttcaccag cgtgcggcag aaaatcgaga aggaggatga 4861 cagtgaaggc gaggagagtg aggaggagga agagggcgag gaggaaggct ccgaatccga 4921 atctcggtcc gtcaaagtga agatcaagct tggccggaag gagaaggcac aggaccagct 4981 gaagggcggc cggcggcggc cgagccgagg gtcccgagcc aagccggtcg tgagtgacga 5041 tgacagtgag gaggaacaag aggaggaccg ctcaggaagt ggcagcgaag aagacgacta 5101 caaggacgac gatgacaaat gataagtcga ccctgtggaa tgtgtgtcag ttagggtgtg 5161 gaaagtcccc aggctcccca gcaggcagaa gtatgcaaag catgcatctc aattagtcag 5221 caaccaggtg tggaaagtcc ccaggctccc cagcaggcag aagtatgcaa agcatgcatc 5281 tcaattagtc agcaaccata gtcccgcccc taactccgcc catcccgccc ctaactccgc 5341 ccagttccgc ccattctccg ccccatggct gactaatttt ttttatttat gcagaggccg 5401 aggccgcctc ggcctctgag ctattccaga agtagtgagg aggctttttt ggaggcctag 5461 gcttttgcaa aaagcttacc atgaccgagt acaagcccac ggtgcgcctc gccacccgcg 5521 acgacgtccc cagggccgta cgcaccctcg ccgccgcgtt cgccgactac cccgccacgc 5581 gccacaccgt cgatccggac cgccacatcg agcgggtcac cgagctgcaa gaactcttcc 5641 tcacgcgcgt cgggctcgac atcggcaagg tgtgggtcgc ggacgacggc gccgcggtgg 5701 cggtctggac cacgccggag agcgtcgaag cgggggcggt gttcgccgag atcggcccgc 5761 gcatggccga gttgagcggt tcccggctgg ccgcgcagca acagatggaa ggcctcctgg 5821 cgccgcaccg gcccaaggag cccgcgtggt tcctggccac cgtcggcgtc tcgcccgacc 5881 accagggcaa gggtctgggc agcgccgtcg tgctccccgg agtggaggcg gccgagcgcg 5941 ccggggtgcc cgccttcctg gagacctccg cgccccgcaa cctccccttc tacgagcggc 6001 tcggcttcac cgtcaccgcc gacgtcgagg tgcccgaagg accgcgcacc tggtgcatga 6061 cccgcaagcc cggtgcctga cgcccgcccc acgacccgca gcgcccgacc gaaaggagcg 6121 cacgacccca tgcatcgata aaataaaaga ttttatttag tctccagaaa aaggggggaa 6181 tgaaagaccc cacctgtagg tttggcaagc tagcttaagt aacgccattt tgcaaggcat 6241 ggaaaaatac ataactgaga atagagaagt tcagatcaag gtcaggaaca gatggaacag 6301 ctgaatatgg gccaaacagg atatctgtgg taagcagttc ctgccccggc tcagggccaa 6361 gaacagatgg aacagctgaa tatgggccaa acaggatatc tgtggtaagc agttcctgcc 6421 ccggctcagg gccaagaaca gatggtcccc agatgcggtc cagccctcag cagtttctag 6481 agaaccatca gatgtttcca gggtgcccca aggacctgaa atgaccctgt gccttatttg 6541 aactaaccaa tcagttcgct tctcgcttct gttcgcgcgc ttctgctccc cgagctcaat 6601 aaaagagccc acaacccctc actcggggcg ccagtcctcc gattgactga gtcgcccggg 6661 tacccgtgta tccaataaac cctcttgcag ttgcatccga cttgtggtct cgctgttcct 6721 tgggagggtc tcctctgagt gattgactac ccgtcagcgg gggtctttca catgcagcat 6781 gtatcaaaat taatttggtt ttttttctta agtatttaca ttaaatggcc atagttgcat 6841 taatgaatcg gccaacgcgc ggggagaggc ggtttgcgta ttgggcgctc ttccgcttcc 6901 tcgctcactg actcgctgcg ctcggtcgtt cggctgcggc gagcggtatc agctcactca 6961 aaggcggtaa tacggttatc cacagaatca ggggataacg caggaaagaa catgtgagca 7021 aaaggccagc aaaaggccag gaaccgtaaa aaggccgcgt tgctggcgtt tttccatagg 7081 ctccgccccc ctgacgagca tcacaaaaat cgacgctcaa gtcagaggtg gcgaaacccg 7141 acaggactat aaagatacca ggcgtttccc cctggaagct ccctcgtgcg ctctcctgtt 7201 ccgaccctgc cgcttaccgg atacctgtcc gcctttctcc cttcgggaag cgtggcgctt 7261 tctcatagct cacgctgtag gtatctcagt tcggtgtagg tcgttcgctc caagctgggc 7321 tgtgtgcacg aaccccccgt tcagcccgac cgctgcgcct tatccggtaa ctatcgtctt 7381 gagtccaacc cggtaagaca cgacttatcg ccactggcag cagccactgg taacaggatt 7441 agcagagcga ggtatgtagg cggtgctaca gagttcttga agtggtggcc taactacggc 7501 tacactagaa gaacagtatt tggtatctgc gctctgctga agccagttac cttcggaaaa 7561 agagttggta gctcttgatc cggcaaacaa accaccgctg gtagcggtgg tttttttgtt 7621 tgcaagcagc agattacgcg cagaaaaaaa ggatctcaag aagatccttt gatcttttct 7681 acggggtctg acgctcagtg gaacgaaaac tcacgttaag ggattttggt catgagatta 7741 tcaaaaagga tcttcaccta gatccttttg cggccgcaaa tcaatctaaa gtatatatga 7801 gtaaacttgg tctgacagtt accaatgctt aatcagtgag gcacctatct cagcgatctg 7861 tctatttcgt tcatccatag ttgcctgact ccccgtcgtg tagataacta cgatacggga 7921 gggcttacca tctggcccca gtgctgcaat gataccgcga gacccacgct caccggctcc 7981 agatttatca gcaataaacc agccagccgg aagggccgag cgcagaagtg gtcctgcaac 8041 tttatccgcc tccatccagt ctattaattg ttgccgggaa gctagagtaa gtagttcgcc 8101 agttaatagt ttgcgcaacg ttgttgccat tgctacaggc atcgtggtgt cacgctcgtc 8161 gtttggtatg gcttcattca gctccggttc ccaacgatca aggcgagtta catgatcccc 8221 catgttgtgc aaaaaagcgg ttagctcctt cggtcctccg atcgttgtca gaagtaagtt 8281 ggccgcagtg ttatcactca tggttatggc agcactgcat aattctctta ctgtcatgcc 8341 atccgtaaga tgcttttctg tgactggtga gtactcaacc aagtcattct gagaatagtg 8401 tatgcggcga ccgagttgct cttgcccggc gtcaatacgg gataataccg cgccacatag 8461 cagaacttta aaagtgctca tcattggaaa acgttcttcg gggcgaaaac tctcaaggat 8521 cttaccgctg ttgagatcca gttcgatgta acccactcgt gcacccaact gatcttcagc 8581 atcttttact ttcaccagcg tttctgggtg agcaaaaaca ggaaggcaaa atgccgcaaa 8641 aaagggaata agggcgacac ggaaatgttg aatactcata ctcttccttt ttcaatatta 8701 ttgaagcatt tatcagggtt attgtctcat gagcggatac atatttgaat gtatttagaa 8761 aaataaacaa ataggggttc cgcgcacatt tccccgaaaa gtgccacctg cagcctgaat 8821 atgggccaaa caggatatct gtggtaagca gttcctgccc cggctcaggg ccaagaacag 8881 atggaacagc tgaatatggg ccaaacagga tatctgtggt aagcagttcc tgccccggct 8941 cagggccaag aacagatggt ccccagatgc ggtccagccc tcagcagttt ctagagaacc 9001 atcagatgtt tccagggtgc cccaaggacc tgaaatgacc ctgtgcctta tttgaactaa 9061 ccaatcagtt cgcttctcgc ttctgttcgc gcgcttctgc tccccgagct caataaaaga 9121 gcccacaacc cctcactcgg ggcgccagtc ctccgattga ctgagtcgcc cgggtacccg 9181 tgtatccaat aaaccctctt gcagttgcat ccgacttgtg gtctcgctgt tccttgggag 9241 ggtctcctct gagtgattga ctacccgtca gcgggggtct ttcatttggg ggctcgtccg 9301 ggatcgggag acccctgccc agggaccacc gacccaccac cgggaggcaa gctggccagc 9361 aacttatctg tgtctgtccg attgtctagt gtctatgact gattttatgc gcctgcgtcg 9421 gtactagtta gctaactagc tctgtatctg gcggacccgt ggtggaactg acgagttctg 9481 aacacccggc cgcaaccctg ggagacgtcc cagggacttt gggggccgtt tttgtggccc 9541 gacctgagga agggagtcga tgtggaatcc gaccccgtca ggatatgtgg ttctggtagg 9601 agacgagaac ctaaaacagt tcccgcctcc gtctgaattt ttgctttcgg tttggaaccg 9661 aagccgcgcg tcttgtctgc tgcagcgctg cagcatcgtt ctgtgttgtc tctgtctgac 9721 tgtgtttctg tatttgtctg aaaattaggg ccagactgtt accactccct taagtttgac 9781 cttaggtcac tggaaagatg tcgagcggat cgctcacaac cagtcggtag atgtcaagaa 9841 gagacgttgg gttaccttct gctctgcaga atggccaacc tttaacgtcg gatggccgcg 9901 agacggcacc tttaaccgag acctcatcac ccaggttaag atcaaggtct tttcacctgg 9961 cccgcatgga cacccagacc aggtccccta catcgtgacc tgggaagcct tggcttttga 10021 cccccctccc tgggtcaagc cctttgtaca ccctaagcct ccgcctcctc ttcctccatc 10081 cgccccgtct ctcccccttg aacctcctcg ttcgaccccg cctcgatcct ccctttatcc 10141 agccctcact ccttctctag gcgccggccg gatcccagtg tg //
